Product description:

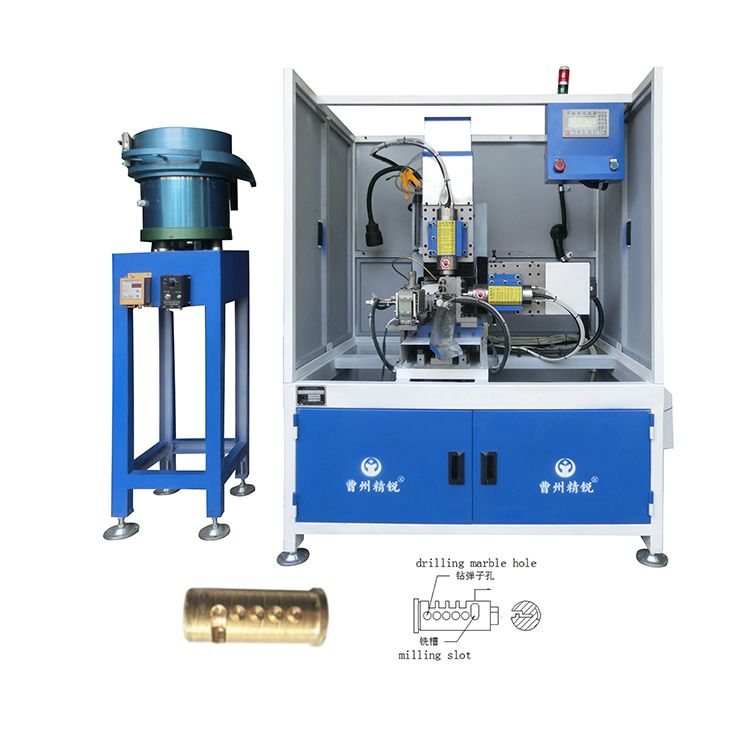

This machine is suitable for drilling pinholes and vertical milling positioning grooves of various lock cores. It is controlled by computer and automatically mills and drills holes. The hole pitch, hole depth and angle depth of the positioning grooves can be adjusted arbitrarily The spindle adopts a high-speed frequency conversion power head, the highest speed reaches 24000r / min, the groove milling finish is high, and the workpiece is automatically clamped and ejected, which greatly improves the work efficiency and saves the processing procedures.
Processing steps:
Vibration plate feeding, automatic clamping, drilling marble holes, milling slots, and automatic ejection
Main accessories and manufacturers:
1. Computer control: Wuxi
2. Ball screw: Taiwan
3. Pneumatic accessories: Taiwan
4. Electrical accessories: Germany
5. Bearing: Japan
6. High-speed motor: Wuxi
7. Hybrid servo motor: Shenzhen
Machine parameters:
1.Machining materials: copper, cast iron
2. Processing range: S-groove, straight groove lock cylinder
3. Working efficiency: 5500-6000 pcs / 8 hours
4. Machine size: 1.3 * 1.0 * 1.5m
5. Machine weight: 550kg
6. Machine power: 3.5kw
