Product parameters:

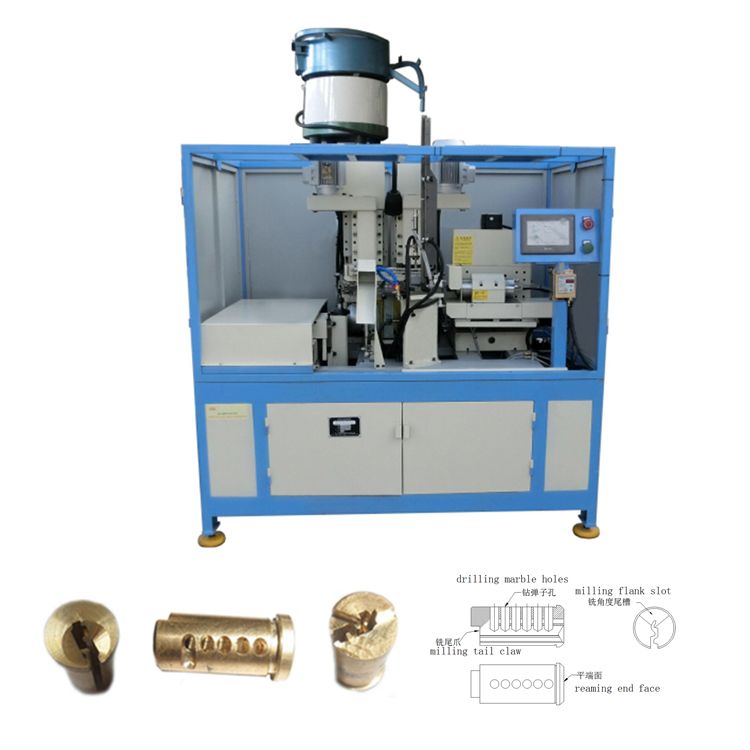

This machine is suitable for all kinds of external machining of lock cylinders. The main shaft of the car lock cylinder adopts imported Taiwan precision spindle, and the feed adopts four-axis linkage and servo motor control. The size of the lock cylinder can be freely set, and the accuracy can reach ± ??0.02mm. The lock core rod material adopts an oil film automatic feeder, which can discharge multiple copper rods at one time. The machine automatically feeds and changes materials with the features of accurate feeding, short material head and high degree of automation. One person can operate multiple devices, which can fully meet the requirements of different customers.
Processing steps:
Automatic feeding, car outer circle, cutting, blanking (continuous feeding).
Main accessories and manufacturers:
1. Computer control: Wuxi
2. Pneumatic accessories: Taiwan
3. Ball screw: Taiwan
4. Electrical accessories: Germany
5. Bearing: Japan
6. Hybrid servo motor: Shenzhen
7.Feeding machine: Suzhou
Product parameters:
1. Processing material: copper
2. Processing range: lock cylinder
3. Working efficiency: 14000-15000 8 hours
4. Machine size: 5.3 * 1.2 * 1.8m
5. Machine weight: 1300kg
6. Machine power: 3kw
